Introduction

Installation

The advanced package and environment management system, Anaconda, Miniconda or Mamba, is needed to be installed first.

The Mamba is recomended due to some (quite often occured) stucks at solving environment on Anaconda. Up to now Mamba works well.

Set up environment based on Mamba

Note

For more details see https://github.com/conda-forge/miniforge#mambaforge

curl -L -O "https://github.com/conda-forge/miniforge/releases/latest/download/Mambaforge-$(uname)-$(uname -m).sh"
bash Mambaforge-$(uname)-$(uname -m).sh

or

wget "https://github.com/conda-forge/miniforge/releases/latest/download/Mambaforge-$(uname)-$(uname -m).sh"
bash Mambaforge-$(uname)-$(uname -m).sh

For users

  • download stable version of sst1mpipe (latest version = 0.7.4)

  • create and activate conda environment

  • install sst1mpipe

SST1MPIPE_VER=0.7.4

wget https://github.com/SST-1M-collaboration/sst1mpipe/archive/refs/tags/v$SST1MPIPE_VER.tar.gz
tar -xvf v$SST1MPIPE_VER.tar.gz
cd sst1mpipe-$SST1MPIPE_VER
conda env create -n sst1m-$SST1MPIPE_VER -f environment.yml
conda activate sst1m-$SST1MPIPE_VER
pip install -e .

rm environment.yml

For developers

  • download latest development version from git repository

  • create and activate conda environment

  • install sst1mpipe

git clone git@github.com:SST-1M-collaboration/sst1mpipe.git
conda env create -f sst1mpipe/environment.yml
conda activate sst1m-dev
pip install -e sst1mpipe

Pre-installed conda environment on Calculus

If one prefers to work on Calculus, he/she may skip the pipeline installation completely and only activate preinstalled environment:

source /data/work/analysis/software/mambaforge/etc/profile.d/conda.sh
conda activate /data/work/analysis/software/mambaforge/envs/sst1m-$SST1MPIPE_VER

Analysis basics

sst1mpipe takes the raw waveforms in each camera pixel, calibrates them into the number of photoelectrons, and reconstructs the physical parameters of primary gamma-ray photons such as their energy and arrival direction. It also classifies events to suppress hadronic background. Standard reconstruction is performed using Random Forest regressors and classifiers, which are pre-trained on precise Monte Carlo simulations. sst1mpipe handles Monte Carlo and Random Forest training as well, and can be also used to estimate SST-1M performance. The data analysis is performed in several subsequent steps, where each data level is stored, and so any possible future reprocessing can start from any point in the chain. The data levels used in sst1mpipe follow the ctapipe data model:

Data Level

Description

File Format

R0

Raw waveforms in each pixel (uncalibrated),

ZFITS

R1

Calibrated waveforms (in photoelectrons, pedestal subtracted)

DL1

Integrated charge and peak position of the waveform in each pixel + Hillas parameters.

HDF5

DL2

Reconstructed event parameters (energy, direction, primary type)

HDF5

DL3

Photon lists (after selection and gammaness cut) + Instrument Response Functions

FITS

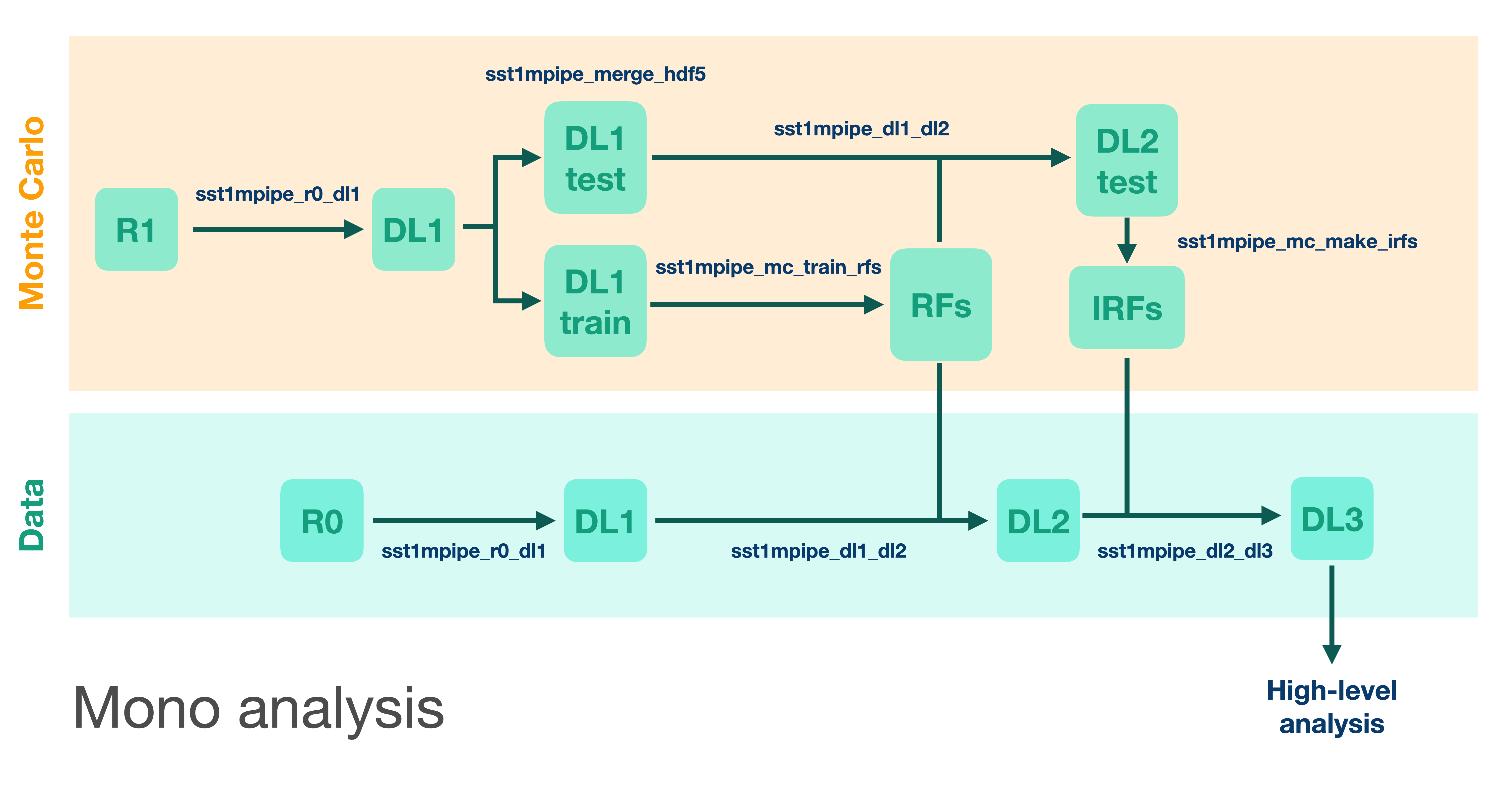

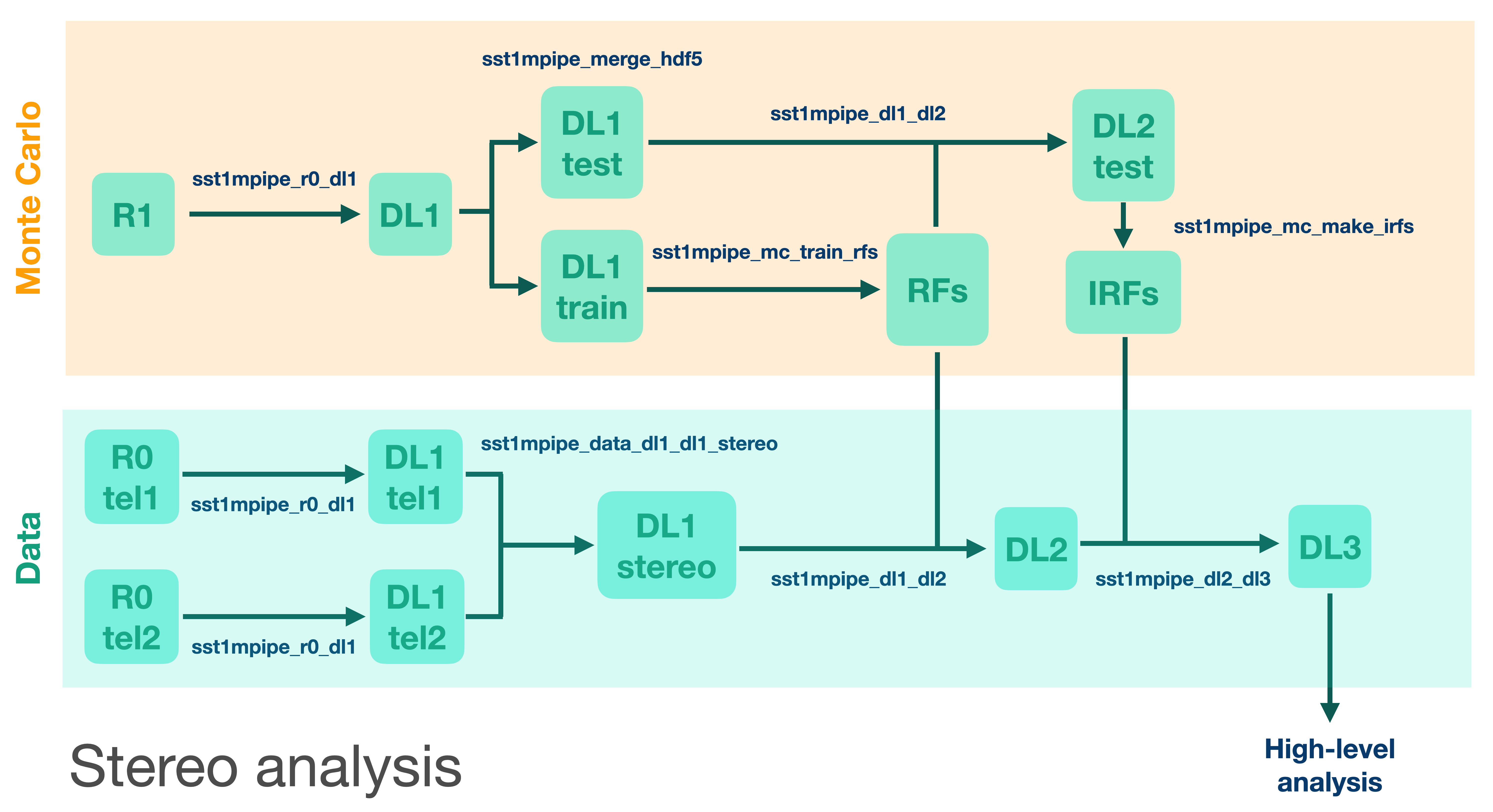

Scheme of data/MC processing the pipeline:

_images/sst1mpipe_scheme_mono.png _images/sst1mpipe_scheme_stereo.png

For a detailed description of all analysis steps, see: SST-1M analysis workflow.
